Assembling of Structure |

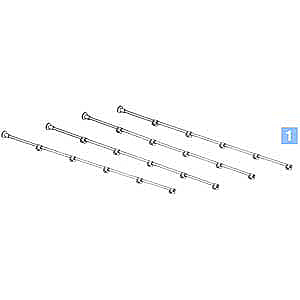

| 1. Mark the position of required fittings on all the vertical tubes, slide them in correct sequence and lightly tighten. |
|

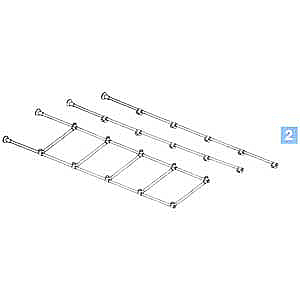

| 2. Assemble one side frame of the structure by adding the cross tubes between two vertical tubes. |
|

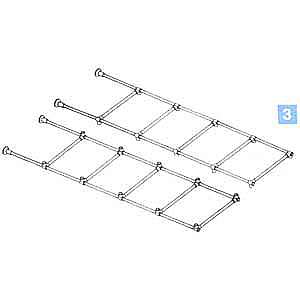

| 3. Assemble other side frame of the structure by adding the cross tubes between other two vertical tubes. |
|

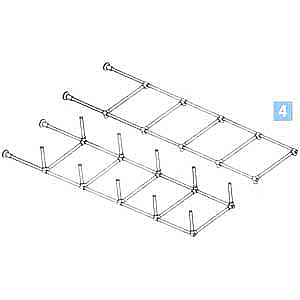

| 4. Build up the cross tubes in one side frame and tighten lightly. |
|

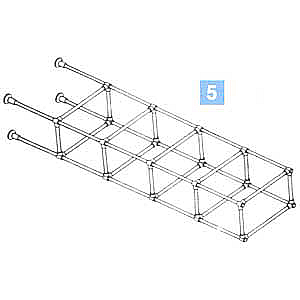

| 5. Add the other side frame on it and tighten all the fittings firmly. |
|

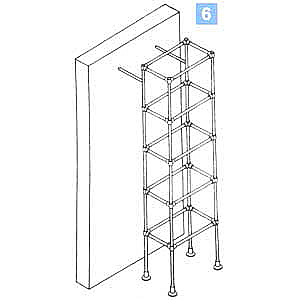

| 6. Hoist the structure and brace it to some existing rigid feature. |
|

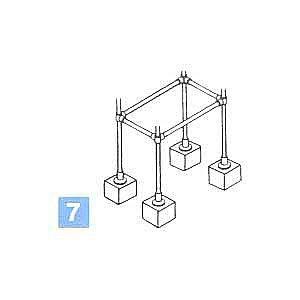

| 7. Grout the foundation bolts and fix the structure bases with that. |
|

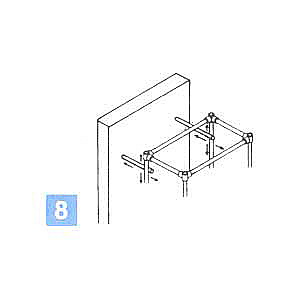

| 8. Adjust bracing to obtain a correct plumb in structure. |
|

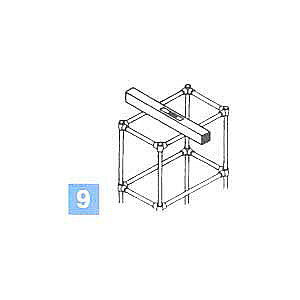

| 9. Adjust the horizontal frames in correct level. |
|

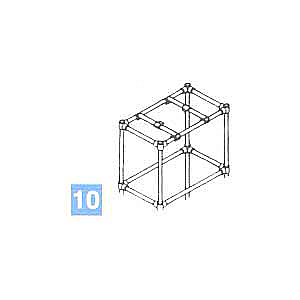

| 10.Assemble the support tubes at their positions. |
|
